IRB200 DTH
Price: 1 / Unit

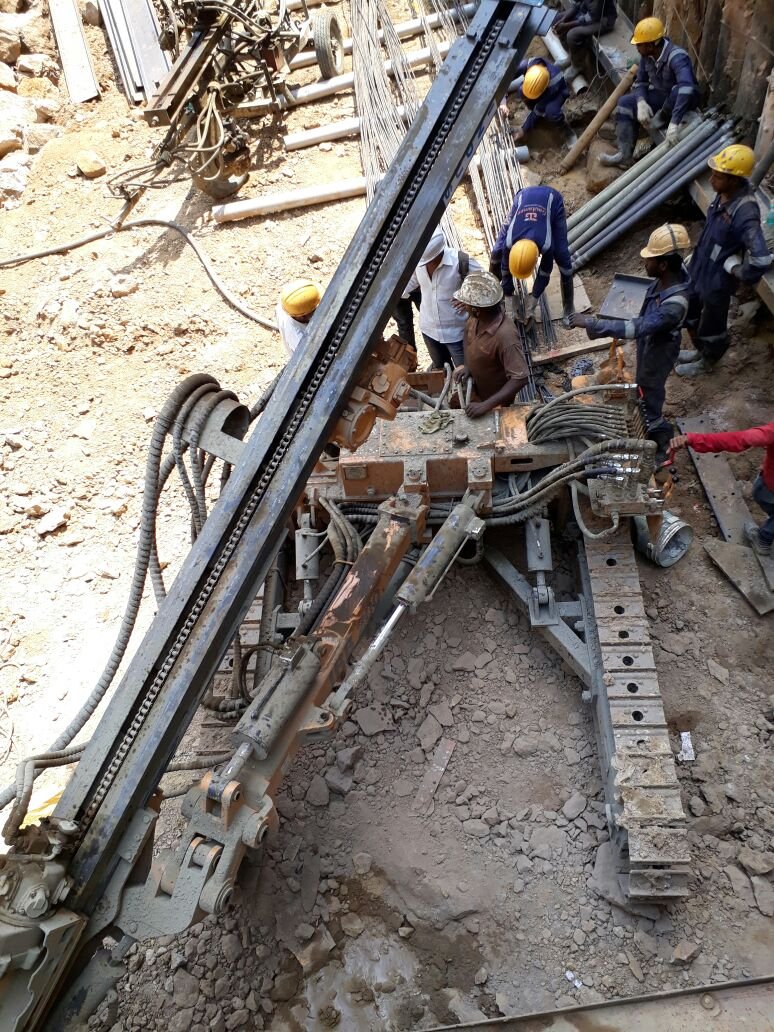

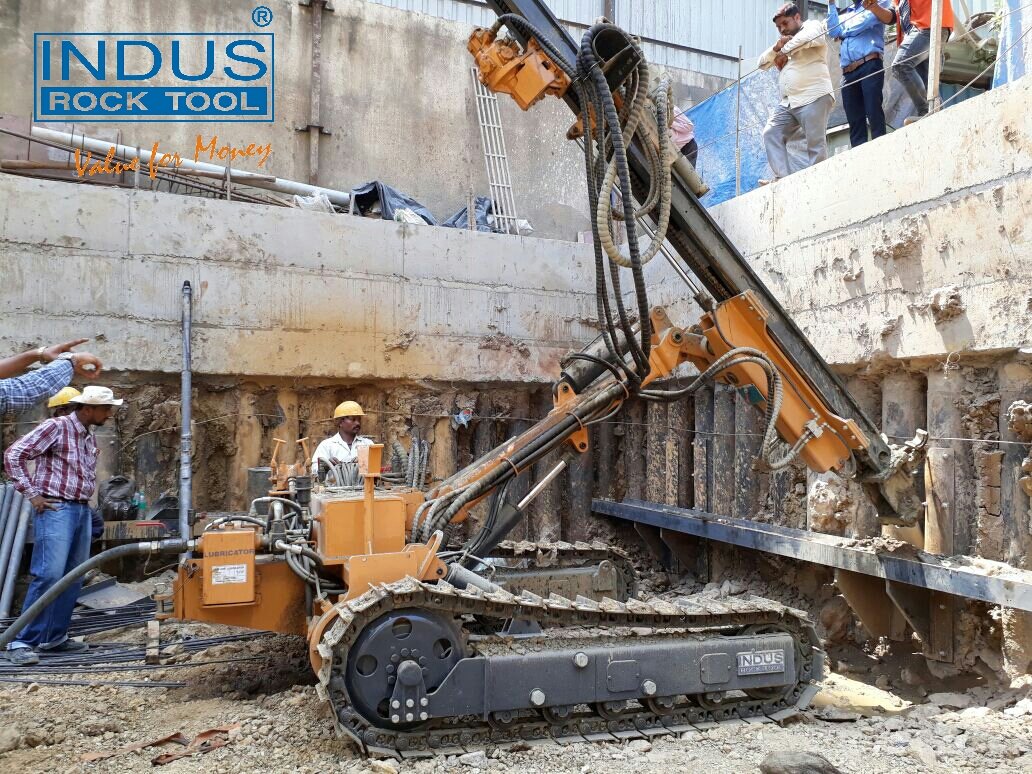

- IRB 200 is Track Mounted, Self Contained Pueumatically Operated Drilling Rig. This drill comes in two different models DTH & Top Hammer. DTH comes with powerful rotation system suitable to drill holes (89 mm to 130 mm) Top Hammer drill comes with high speed drifter with independent rotation system suitable to drill holes of 2" - 3 1/2" (48-89 mm) with IPD120 Drifter and IPD 140 Drifter. This drill is capable of high manoeuvrability and exceptional operational ease on any site to assure you a total drilling capability. Thus this machine is best and economical solution in this calss. Heavy structure will give stability with high pressure compressor.
- High power planetary traction gear box with 11.4 hp air motor
- Heavy duty long boom
- Heavy duty Drill Guide with square bar for smooth operation
- Powerful Drifter with independent rotation system
- Crimp type Hose fitting with Hose Protector
- Heavy Duty Feed System suitable for 12 ft. Rods
- Easy to Maintain and Repair
- Inbuilt check valve on all hydraulic cylinders for more safety
- Wet dust suppression system (optional)
IRB 200 DTH |
| Working Weight (Approx) | 5300 |
| DTH / Top Hammer | DTH |
| Hole Daimeter | 89~165 |
| Rod Length | 3660 (12 ft.) |
| Hole Depth | 15/48 |
| Recommended Air Compressor | 450~200 |
| Compressor | ... |
| Cabin | ... |
